Traefik 101

- 13 mins read

Many of us are running traefik. If you’re like me, you copy/pasted some docker-compose.yaml from a webpage, added some labels to your other docker-compose.yaml files, and things went up and running. Sooner or later you want to have something more fancy, and you need to understand what you actually did. RTFM and all that, you look at https://doc.traefik.io, and … it’s a mess. Honestly, I’m lost in this documentation.

In this post I’ll walk you through the differences between static and dynamic configurations, I’ll show what other configurations than http exist, which providers you need, and how entrypoints, routers, and services play together if you mix manual and automatic configurations.

This post is the result of many hours of playing with a docker-compose.yaml and some configuration files on my laptop, which I applied now to my server. I start with the files needed for the traefik configuration, and then go through different configurations for the services.

Setup

My server setup is the following:

  • docker-compose.yaml files in home-directories, with one user per service
  • one or more domains with potential subdomains for each service
  • using letsencrypt for getting certificates

I’ll use SERVER_IP in the rest of this post to represent the public IP address of the server.

Also, this post supposes you’re running traefik v3 - at least one option used here is not available for traefik v2: entrypoints.websecure.asDefault.

Testing Setup Locally

You can test all of this locally on your computer, be it Windows, Mac, or Linux, as long as docker runs. Create a temporary directory representing the /home directory of the real server, e.g., ~/tmp/traefik101. Then, instead of using /home/traefik, you’ll use ~/tmp/traefik101/traefik.

Whenever you see SERVER_IP, you’ll have to replace it with 127.0.0.1. You can use local domains if you add them to /etc/hosts. For example, to add whoami to /etc/hosts, the following command will do so:

echo "127.0.0.1   whoami" | sudo tee -a /etc/hosts

Of course a sudo vi /etc/hosts or whatever editor you prefer also works. On Windows, the file seems to be C:\Windows\System32\drivers\etc\hosts, but I didn’t try this one out.

Glossary of Traefik Terms

This is a list of all traefik terms used in this post. They are linked to the documentation of traefik, to allow you to dive deeper into each definition.

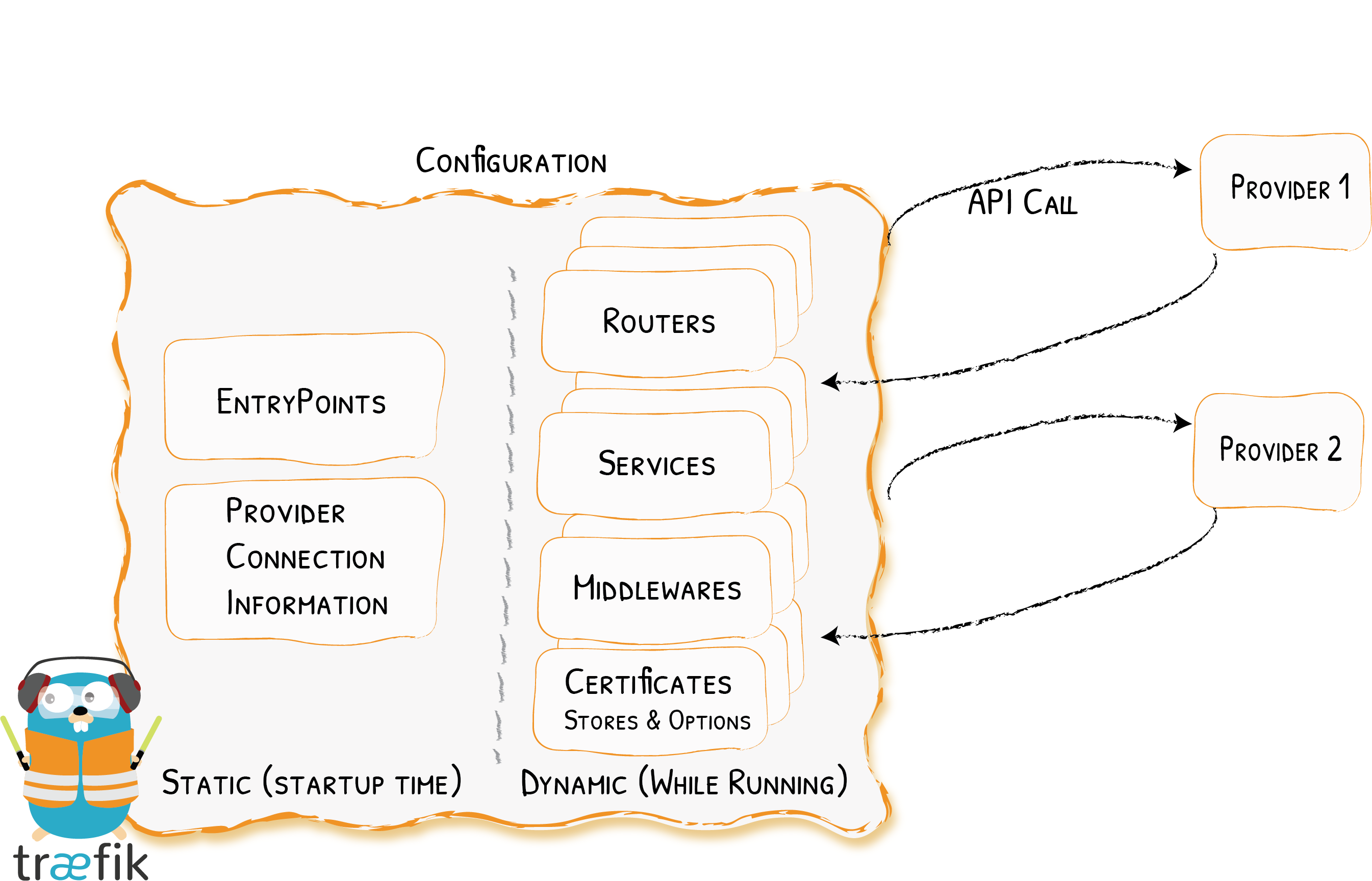

As an overview, the following image shows the different components described in this blog post: Static - Dynamic Configuration Fig: Static and Dynamic Configuration from Traefik Documentation

  • Static configuration - only loaded when traefik starts
    • entryPoints - which ports traefik will open and listen on
    • providers - sources for dynamic configurations, for this post only docker and file providers are used
    • certificatesResolvers - allow creating TLS certificates. We’ll use LetsEncrypt in this post
    • log, accesslog, api - for debugging. Once everything works, these should be commented out
  • Dynamic configuration - can be modified without having to restart traefik
    • http for everything related to http traffic. In this post we’ll cover
      • services which are endpoints for the traffic
      • middlewares to modify the traffic between the entryPoints and the services
      • routers use rules to pass traffic between an entryPoint and a service
    • tls to define which TLS protocols we want traefik to accept and process
    • tcp, udp, which are not covered in this post, but also allow the definition of services, middlewares, and routers

Furthermore, I’m using docker container and docker compose service interchangeable in this document.

Configuring Traefik

The following is my current setup on my server, which you can use as the base for your own configuration. You can use it to start your own experiments - either by starting locally, or by being very brave (stupid?) and use it directly on your server. All the files can also be found in the following github repo:

https://github.com/ineiti/traefik-101

docker-compose.yaml

The following docker-compose.yaml file doesn’t include any of the labels you might have seen in other tutorials. In this post, all configuration is stored in files. This makes it easier to understand the configuration and change some settings for debugging.

On my server, I created a traefik user, and put this file in /home/traefik/docker-compose.yaml:

services:
  traefik:
    image: "traefik:v3"
    ports:
      - "80:80"
      - "443:443"
      # This is only used for the dashboard
      - "8080:8080"
    volumes:
      # Mount the whole directory with all configuration files in it. This is
      # preferable than mounting each configuration file individually.
      - "./config:/etc/traefik:ro"
      # Here traefik will store the acme.json file with the private keys for
      # the certificates.
      - "./letsencrypt:/letsencrypt"
      # Traefik needs access to the docker socket to detect new
      # docker containers.
      - "/var/run/docker.sock:/var/run/docker.sock:ro"
    networks:
      # Use a separate docker-network for all internet traffic. This is needed
      # if some of the docker-containers use their own network, too, for example
      # a webserver communicating with its database, but wanting to be available
      # over the internet.
      - traefik
    restart: unless-stopped

networks:
  traefik:

Static Configuration

This is the main configuration file. Together with the dynamic configuration file, it is in /home/traefik/config, and should belong to the traefik user.

In the traefik documentation, this is called the static configuration, because it is supposed to not change a lot. All http/tcp/udp/tls specific configuration will go into the dynamic configuration. The following is mostly trial and error: besides mentioning static and dynamic configuration, I couldn’t find descriptions in the traefik documentation which configuration options belong to which part.

This configuration sets up:

  • two entrypoints, one for http and one for https
  • a docker provider to automagically set up routes and services for docker containers
  • a file provider for additional dynamic configuration
  • certificate resolver to use letsencrypt for setting up TLS certificates
  • debugging using logging and dashboard
entryPoints:
  web:
    address: ":80"

  websecure:
    address: ":443"
    # The docker-provider will only create routers for this entrypoint, and
    # not for the `web` entrypoint.
    asDefault: true
    http:
      # Set up TLS for every router using this entrypoint.
      tls:
        certResolver: myresolver
        domains:
        # Here you can add domains which do not appear in any Host(``) rule,
        # but for which you still need certificates. This is useful for some
        # mailserver configuration.

providers:
  docker:
    # Connect traefik to docker and let it help writing routers and
    # services. But only if the docker-container has
    # - "traefik.enable=true"
    # in its labels.
    exposedByDefault: false
    # Per default use the network created in docker-compose.yaml. This
    # supposes that the docker-compose.yaml file is in a directory called
    # `traefik`, because docker-compose prepends the current directory name
    # to all service and network names.
    network: traefik_traefik
    # For every docker container with traefik enabled, create a router with
    # the following rule. The 'fqdn' is set in the `labels` definition of
    # the docker container, e.g.,
    # - "fqdn=subdomain.example.com"
    defaultRule: "Host(`{{ index .Labels \"fqdn\"}}`)"
  file:
    # Include our dynamic file as source for additional routers and other
    # configuration.
    filename: "/etc/traefik/dynamic.yaml"
    watch: true

# This can be commented out once things run stable.
log:
  level: "TRACE"
  format: "common"

# Displays the requests served by traefik. Comment it out once things
# run good.
accesslog: {}

# Show the dashboard at SERVER_IP:8080 to verify the routers and services are
# correctly set up.
# COMMENT OUT FOR A PRODUCTION SYSTEM!
api:
  insecure: true
  dashboard: true

# Get automatic certificates from letsencrypt and store them on the
# server. Replace <your email> with your current email.
certificatesResolvers:
  leresolver:
    acme:
      # Uncomment the line to use Let's Encrypt's staging server,
      # leave commented to go to prod.
	  # caServer: "https://acme-staging-v02.api.letsencrypt.org/directory"
      tlsChallenge: {}
      email: <your email>
      storage: /letsencrypt/acme.json

Dynamic Configuration

The traefik documentation calls this the dynamic configuration, because it changes more often than the static one. YMMV, I’m changing the logging levels more often than TLS options, but who am I to judge?

This file configures two things:

http:
  routers:
    http-router:
      # Connect the router to all requests coming in through `web`.
      entryPoints:
        - web
      # Catch all requests to any hostname.
      rule: "HostRegexp(`.*`)"
      # Apply the 'http-redirect' middleware.
      middlewares:
        - http-redirect
      # Every router needs to be connected to a service - here the service is
      # never reached.
      service: noop@internal
      # Set the priority to '1', so that other docker containers can overwrite
      # this router with a higher priority.
      priority: 1

  middlewares:
    http-redirect:
      # This middleware redirects all requests to https, and informs the
      # client's browser that this is permanent.
      redirectScheme:
        scheme: https
        permanent: true

tls:
  options:
    default:
      # Allow TLS >= 1.2
      minVersion: "VersionTLS12"
      cipherSuites:
          # Secure cipher suites for TLS=1.2
        - "TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384"
        - "TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256"
        - "TLS_ECDHE_RSA_WITH_CHACHA20_POLY1305_SHA256"
        - "TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384"
        - "TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256"
        - "TLS_ECDHE_ECDSA_WITH_CHACHA20_POLY1305_SHA256"

Starting up Traefik

With the above configuration files, you should have a directory-tree which looks like this:

.
├── docker-compose.yaml
├── config
│   ├── dynamic.yaml
│   └── traefik.yaml

If you have docker installed, and the traefik user has the right to use docker, you should be able to start traefik with the following command:

docker compose up

During setup I don’t add the --detach argument so I can see any errors or warnings directly. If you have the api:insecure enabled, you should be able to connect to the dashboard using a browser pointing to http://SERVER_IP:8080. If you can’t reach the dashboard, look through the logs to see what went wrong.

Adding Services

Now you can add services which will be more or less automatically added to traefik.

Simplest Example

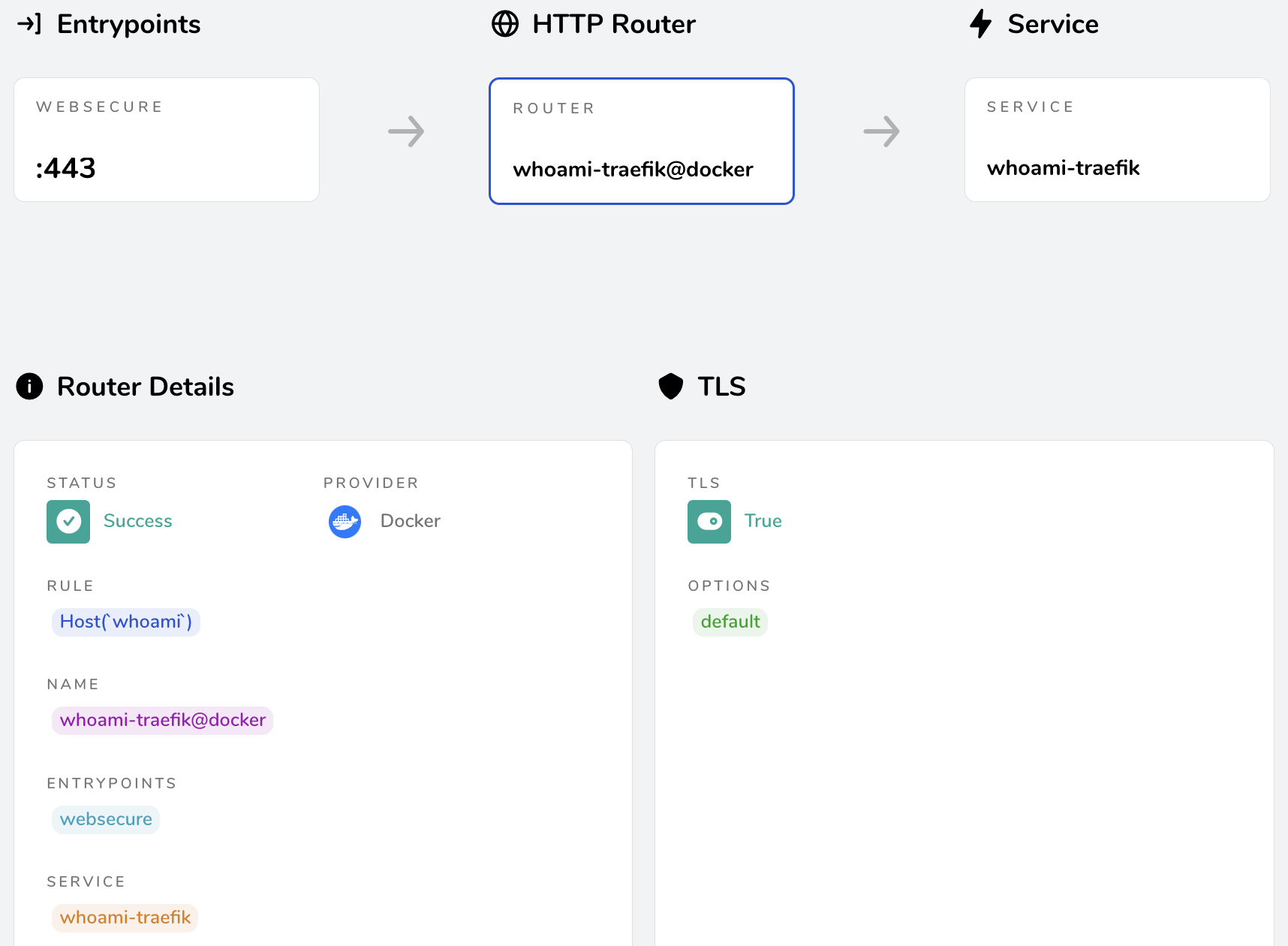

Simple Configuration Fig: the simplest configuration of traefik with a direct route from the entrypoint to the service.

Let’s create a simple example with a hostname. If you run this locally on your computer, you can choose any hostname, and add it to /etc/hosts. If you bought a domain name and configured it to point to your SERVER_IP, you can also use directly this domain name, or any subdomains. Traefik is very fond of the whoami service which returns the IP of the client. Let’s use it by creating a new docker-compose.yaml file. On a dedicated server, create a whoami user, give it the rights to use docker, and then create the file /home/whoami/docker-compose.yaml with the following content:

services:
  whoami:
    image: traefik/whoami
    networks:
      # The docker container needs to connect to the traefik network.
      - traefik
    labels:
      # Enable traefik to do its magic router and service setup.
      - "traefik.enable=true"
      # Give the domain name for the Host(`fqdn`) rule.
      - "fqdn=whoami"

networks:
  traefik:
    external:
      # This is because docker compose renamed the `traefik` network by
      # prepending the directory name.
      name: traefik_traefik

If you’re running this locally on your computer, be sure to add whoami as a reference to localhost in your /etc/hosts. Start the new service with docker compose up. The traefik log output should now reflect that it detected a new service and set it up. Looking at http://SERVER_IP:8080/dashboard/#/http/routers, you should see that traefik created a HTTP Router for the whoami docker container.

Defining the Port

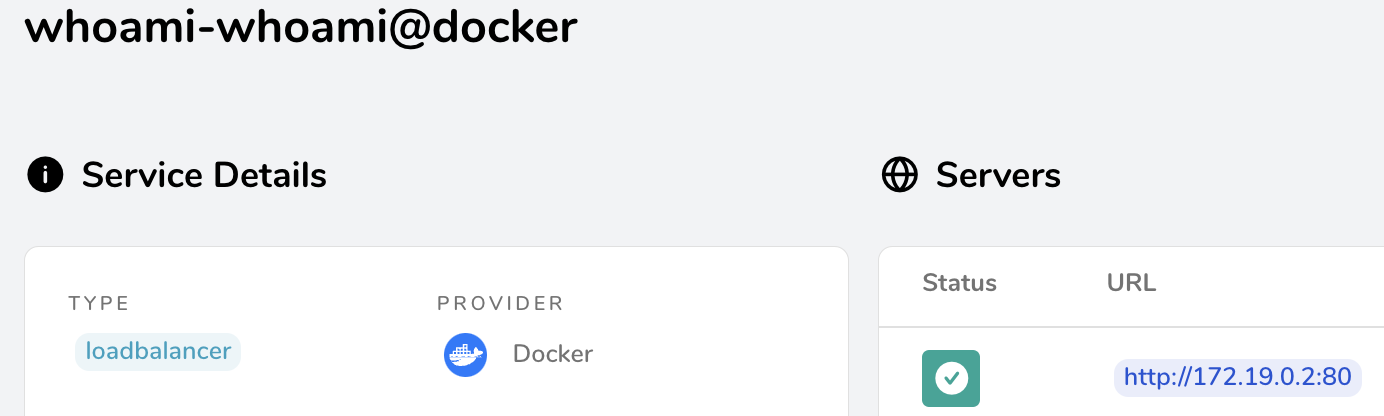

Service with port Fig: traefik will connect the router automatically to the service in the docker-compose.yaml

Using traefik, you don’t need to expose the port in the docker-compose.yaml file with the ports: directive. It is enough if the Dockerfile has an EXPOSE directive. You can check that this is the case for traefik/whoami with docker inspect traefik/whoami and search for ExposedPorts. If you have a docker-image with a missing EXPOSE directive, you can create a traefik service with the internal port. Of course, your docker image must listen on this port not only on 127.0.0.1, but on the global 0.0.0.0 address.

Traefik will then pick up this service and connect the newly created router to. If you define more than one service for your docker container, traefik will complain with an error and not create a router for this docker container!

services:
  whoami:
    image: traefik/whoami
    networks:
      - traefik
    labels:
      - "traefik.enable=true"
      - "fqdn=whoami"
      # Defining the service with the port is enough - traefik will pick
      # it up and connect it with the appropriate router.
      - "traefik.http.services.whoami-whoami.loadbalancer.server.port=80"

networks:
  traefik:
    external:
      name: traefik_traefik

Multiple Domains for One Service

Multi-domain rule Fig: the router created by traefik with a rule to accept two hostnames

If you want to route multiple domains to a single docker container, you can add a label to inform traefik your rule should allow a list of hosts. While using HostRegexp is also a possibility, traefik will complain that it cannot extract the domain names to pass them to the certificatesResolvers. But using a list of ored Hosts allows traefik to extract the domain names and create certificates for each one of them.

Again, traefik is smart enough to pick up any router name you choose, and will create a service for you and connect the router to the service and the websecure endpoint. Of course you can combine this with the previous example if the docker image doesn’t expose a port.

services:
  whoami:
    image: traefik/whoami
    networks:
      - traefik
    labels:
      - "traefik.enable=true"
      # Define all needed hosts with an 'or'. No need to add the `fqdn` label.
      - "traefik.http.routers.whoami-traefik.rule=(Host(`whoami1`) || Host(`whoami2`))"

networks:
  traefik:
    external:
      name: traefik_traefik

Pass-Through http as Well as https

As a final example I add what brought me to this journey: I wanted to add the possibility for a project to have a direct http connection, in parallel to the https connection. This was needed in my case because the ESP32 library had trouble using Server Side Events with https.

To spice it up, the rules are:

  • If the request goes to http://whoami/api, let it pass
  • Route all requests to https://whoami to the traefik service of the docker container
  • All other requests to http://whoami should be redirected to https://whoami

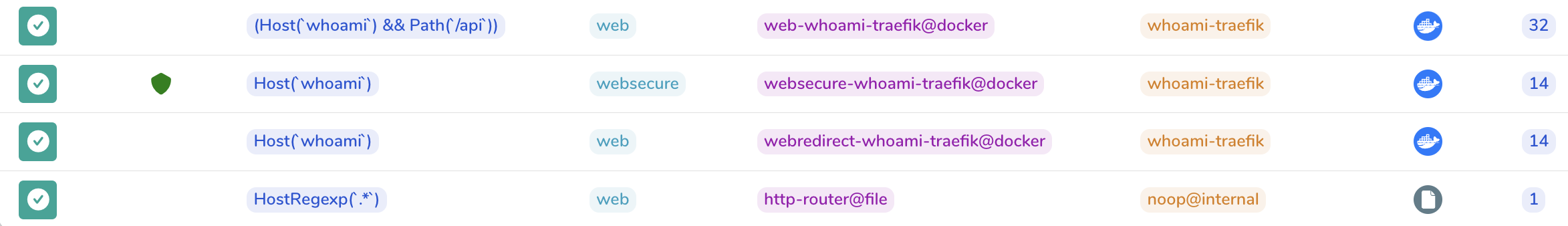

Pass-through and redirect Fig: the three rules from above, and the default rule with the lowest priority of 1

services:
  whoami:
    image: traefik/whoami
    networks:
      - traefik
    labels:
      - "traefik.enable=true"
      - "fqdn=whoami"
      - "traefik.http.routers.web-whoami-traefik.entrypoints=web"
      # Only route the `/api` path directly using http.
      - "traefik.http.routers.web-whoami-traefik.rule=(Host(`whoami`) && Path(`/api`))"
      # For all other requests to this domain, create a redirect to https
      - "traefik.http.routers.webredirect-whoami-traefik.entrypoints=web"
      - "traefik.http.routers.webredirect-whoami-traefik.middlewares=http-redirect@file"
      # Finally add the websecure router - as at least one router is defined
      # manually, traefik will not add the websecure router on its own.
      - "traefik.http.routers.websecure-whoami-traefik.entrypoints=websecure"

networks:
  traefik:
    external:
      name: traefik_traefik

How Traefik Uses the Docker Provider

One thing I missed in the traefik documentation is what magic traefik does to create the routers and the services. To create a mental model for this I ran different docker-compose.yaml files with different static and dynamic configurations to figure out what traefik will do. This is what I came up with:

  • if traefik.enable=true is missing, traefik doesn’t do anything with this docker container
  • traefik reads the traefik.http.(routers|services) labels and sets up the corresponding routers and services
    • the other entires like middlewares are also interpreted, but are not automatically included
  • if no services are defined, it sets up a new traefik service with the name of the docker container (docker compose service):
    • if a port is exposed (either in the Dockerfile or the docker-compose.yaml), it ties to this port
    • if multiple ports are exposed, it ties to the lowest port
    • if no ports are exposed, traefik will report an error and not create any service for this docker container
  • if no routers are defined, it sets up a router with the name of the docker container and the following configuration:
    • using the websecure entrypoint, as this one was defined asDefault in config/traefik.yaml
      • without the asDefault option, traefik would set up a router for both the web and the websecure entrypoints
    • adding tls: {} to the router
    • using the rule Host('fqdn') , as defined in providers:docker:defaultRule in config/traefik.yaml
      • here the fqdn is replaced with the value of the label fqdn of the docker container
    • pointing to the service defined by this docker container. If multiple or no services are defined in this docker container, traefik reports an error
  • if one or more routers are defined by the docker container’s labels, regardless of the name given, it will complete the routers:
    • add tls: {} if the router’s entrypoint is websecure
    • add any of the missing service, rule, entrypoint, as with a new router

Comments

If you want to leave a comment, please click on the toot and reply. Your comment will then appear here.
